2m 144MHZ - 146MHZ RECEIVER

                        Her I am use MC3357 / LA1186  in this 2m Receiver
 This experiment was done when I was a SWL lesson 145.625MHz Repeater / 145.650MHz Repeater  59 Signal Repot With my Home brew ground plan Antenna 10 feet height  Excellent Sensitivity without preamp . Local osc are very stable when I on Rx 2min in drift +- 50 kHz and get very stable in 24 hrs.
This Receiver good perform for SWL / Ham operators / Monitor 2m band.

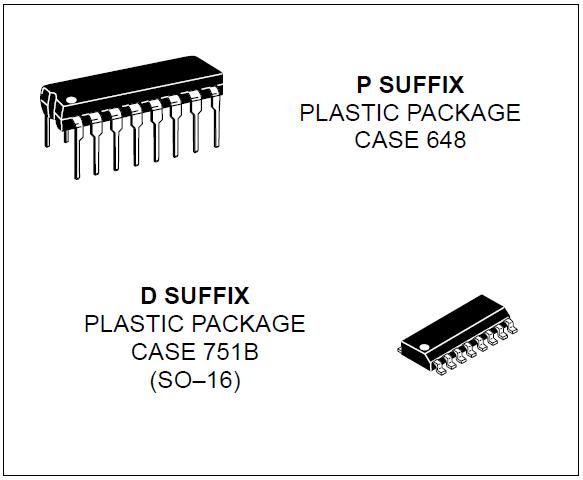

Includes Oscillator, Mixer, Limiting Amplifier, Quadrature Discriminator,
Active Filter, Squelch, Scan Control, and Mute Switch.
• Excellent Sensitivity: Input Limiting Voltage – (– 3.0 dB) = 5.0 mV (Typical)
• Low Number of External Parts Required

LA1186 Features and Functions

• Contains RF amplifier, MIX, OSC, AFC diode
• Operating voltage: 1.8 to 8.0V.
• Improvement in cross modulation characteristic due to the use of double-balanced MIX.
• Improvement in strong input characteristic.
• Less spurious radiation from local OSC.
• TV (1 to 12 channel) receive capability.


PCB side Size . H50.8mm / 103.33mm

Component side Size . H50.8mm / 103.33mm
